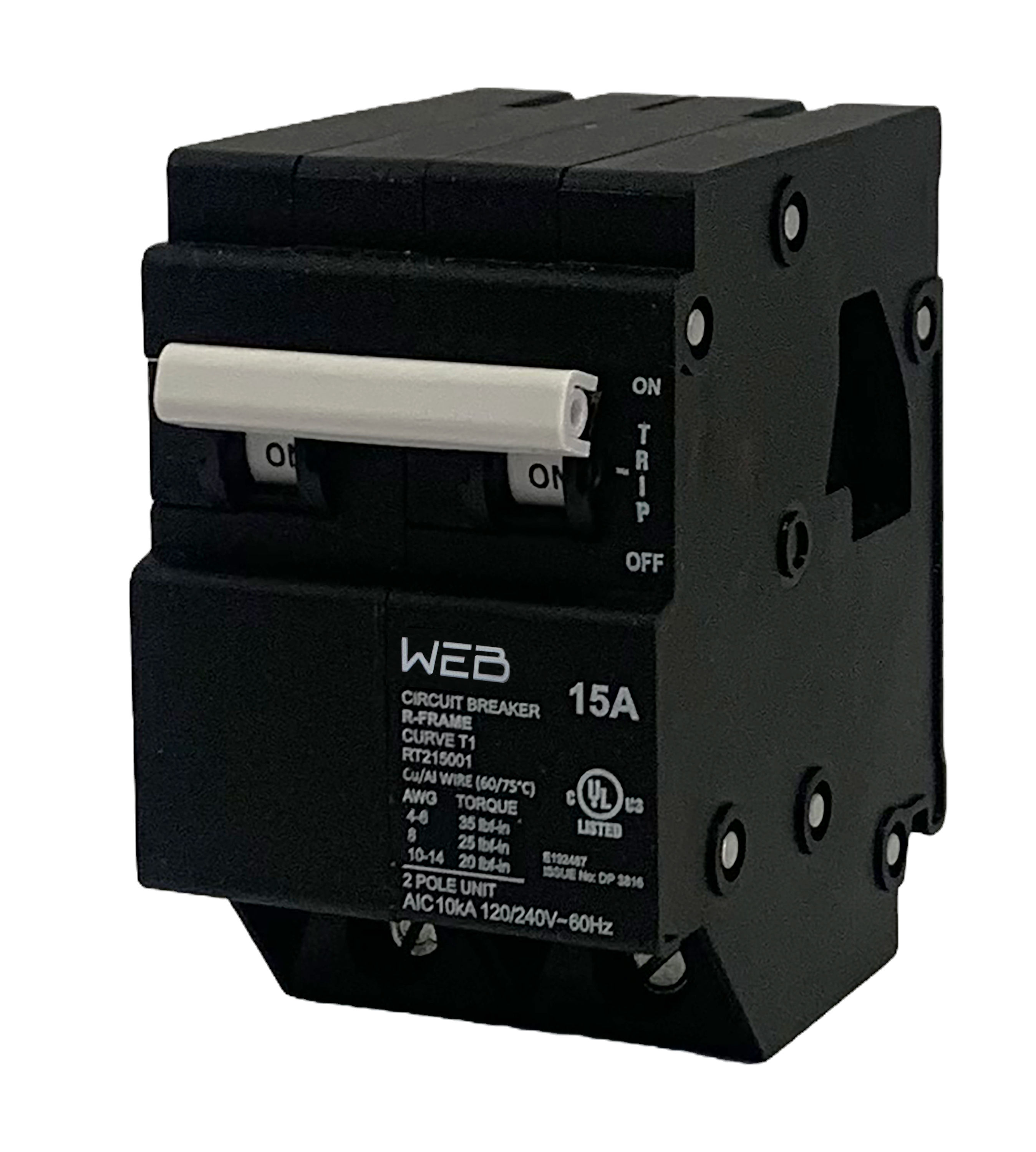

R-Frame Thermal-Magnetic Circuit Breaker (Pending Certification)
The WEB R-Frame is a thermal magnetic circuit breaker designed for reliable branch circuit protection in residential and light commercial panels.
The WEB R-Frame is the breaker you put in a panel when you need reliable branch circuit protection and you don't need it to be complicated. It's a thermal-magnetic breaker - the standard type used in residential and light commercial panels across North America - available in single and double pole from 15 to 60 A.
Thermal-magnetic means two protection mechanisms in one device. The thermal element handles overloads that build up over time - a circuit running hotter than it should for longer than it should. The magnetic element handles short circuits, tripping nearly instantly when current spikes to a dangerous level. Together they cover the two failure cases that branch circuit protection exists to catch.
When it trips, the handle moves to a mid-position that's visually distinct from both ON and OFF. You know what happened at a glance, without pulling out a tester or guessing whether someone just switched it off.
Key Features
Thermal-magnetic protection - overload and short circuit coverage in one device

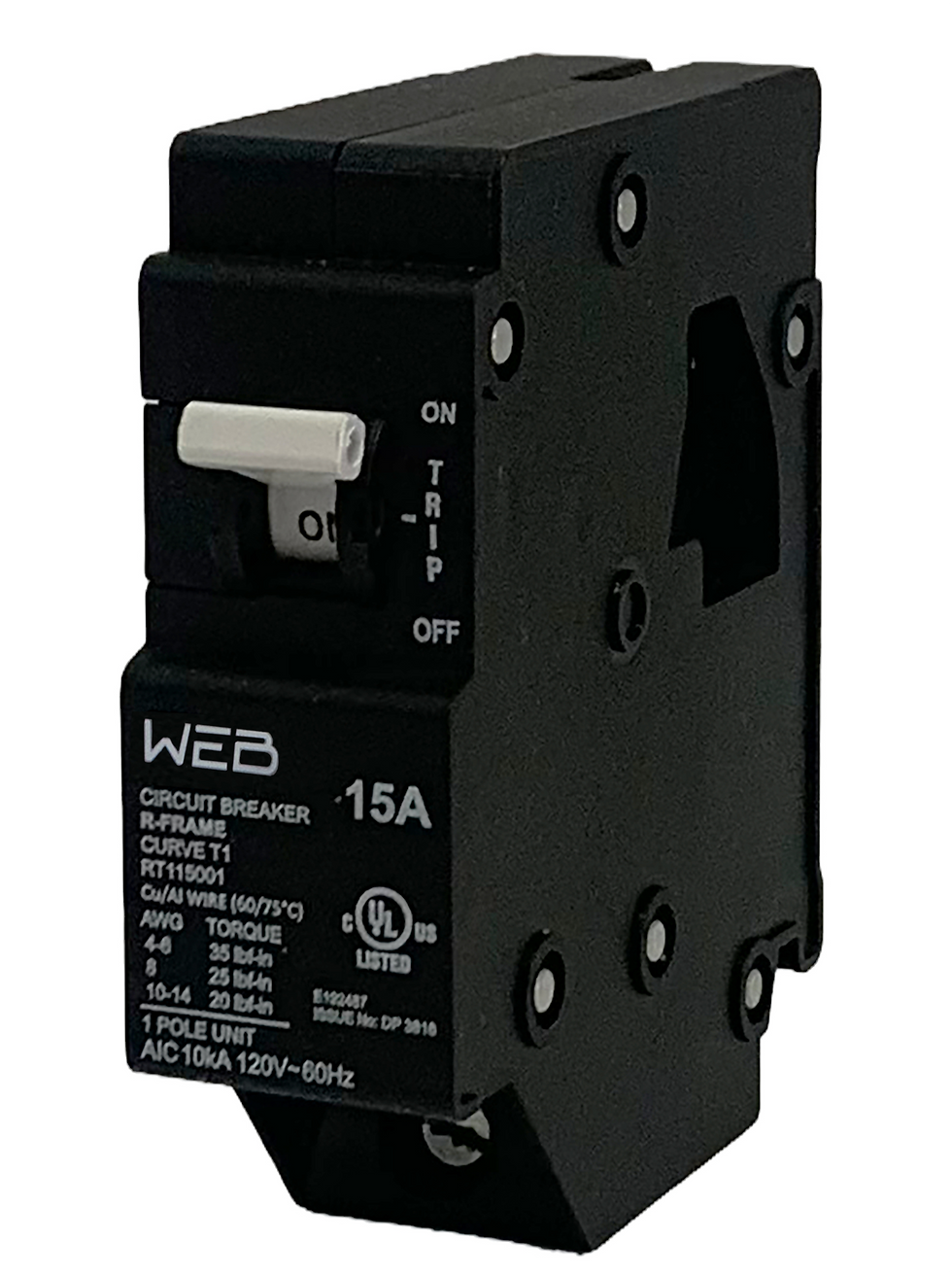

Single & double-pole configurations
Ratings available in 15, 20,30,40, 50, and 60 A
Mid-trip indicator - visually distinguishes a trip from a manual switch-off
FIame-retardant Nylon housing for superior protection.
Certified and Listed by ULc to UL 489, UL 943, and CSA C22.2 No. 5 (Pending certification)
Where it's Used
Residential Load Centers - bedroom, kitchen, laundry, HVAC, and general branch circuits
Light commercial offices, retail spaces, and tenant panels
Panel Replacement breakers in existing residential or commercial installations
New Construction panelboard builds requiring reliable code-compliance branch circuit protection.
OEM and factory-installed panel configurations
Why Installers Prefer It Over the Standard Option:
There's no shortage of thermal-magnetic breakers on the market. The difference with the WEB R-Frame comes down to fit, reliability, and who's behind it.
The mid-trip indicator is a small thing that saves real time on a service call. WEB doesn’t make hundreds of SKU’s – it focused lineup of products are built to solve real-world problems. – When you have a question about the WEB R-Frame, you're talking to someone who can actually answer it.
For contractors who want a straightforward, code-compliant breaker from a supplier they can actually reach, the WEB R-Frame is the right call.
